| Parameter | Unit | DY-HFM-PET-01 | DY-HFM-PET-02 | DY-HFM-PET-03 |
| Variant | Fine-sludge support | General dewatering | Open drainage | |
| Material | Polyester monofilament or mixed-yarn fabric, as listed | Polyester monofilament or mixed-yarn fabric, as listed | Polyester monofilament or mixed-yarn fabric, as listed | |
| Warp filament | mm | 0.4 | 0.5 | 0.7 |
| Weft filament | mm | 0.5 | 0.7 | 0.9 |
| Warp density | threads/cm | 33 | 28 | 16.3 |
| Weft density | threads/cm | 9 | 8.5 | 5 |
| Fabric caliper | mm | 1.3 | 2.0 | 2.1 |
| Fabric mass | g/m² | 800 | 1530 | 1500 |
| Air permeability | m³/(m²·h) | 2976 | 4896 | 7520 |
| MD breaking strength | N/cm | 1600 | 1600 | 1600 |
| Joint breaking strength | N/cm | 900 | 900 | 900 |
| Ordering details | ||||
| Joint | SP – Spiral-pin joint | SP – Spiral-pin joint | SP – Spiral-pin joint | |
| Edge finish | PU – Polyurethane edge seal | PU – Polyurethane edge seal | PU – Polyurethane edge seal | |
| Color | B – Blue | B – Blue | B – Blue | |
| Order dimensions (example) | mm | W2000-L12000 | W2000-L12000 | W2000-L12000 |
| Order code (example) | DY-HFM-PET-01/W2000-L12000/SP/PU/B/R01 | DY-HFM-PET-02/W2000-L12000/SP/PU/B/R01 | DY-HFM-PET-03/W2000-L12000/SP/PU/B/R01 | |
| Dimensions | Custom finished dimensions to the machine drawing. | |||
| Specification scope | Nominal fabric specifications; assembly details apply as listed. | |||

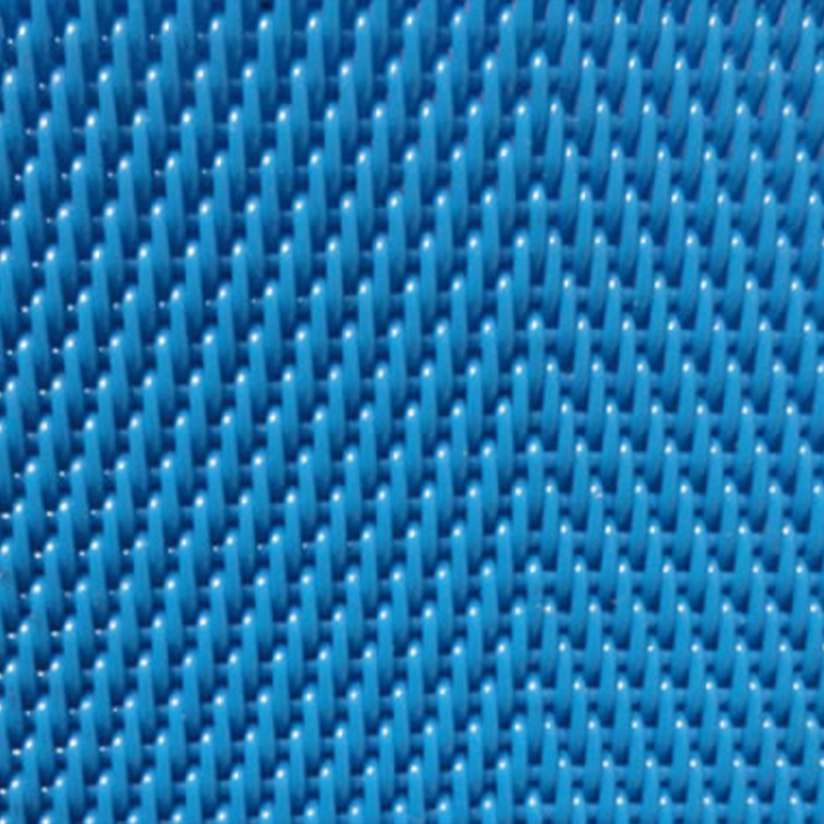

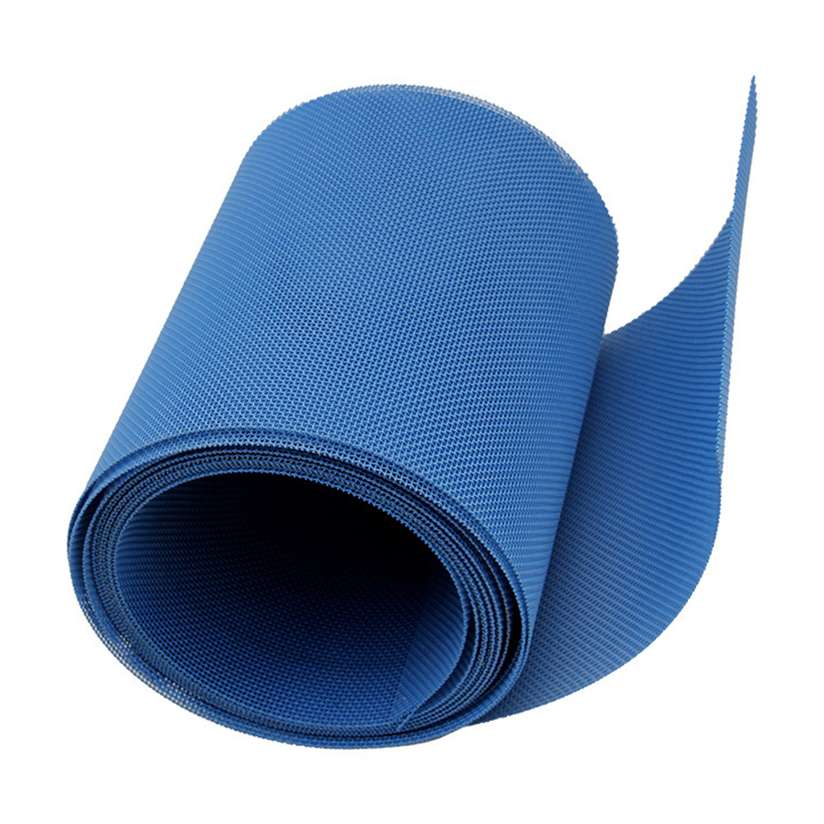

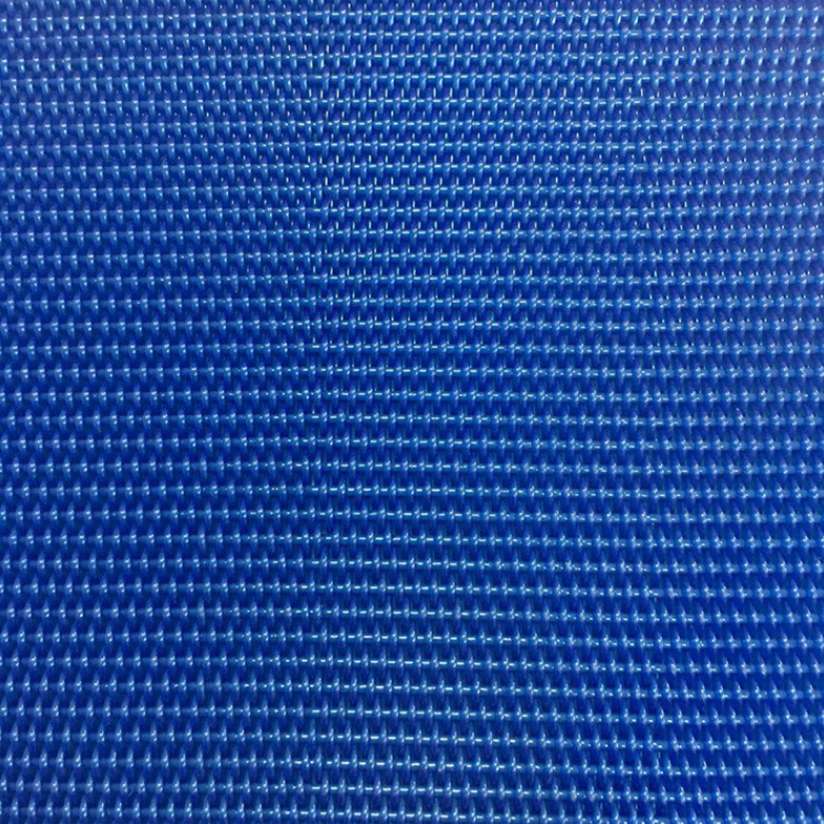

The Herringbone pattern offers enhanced strength and flexibility, while the imported latex joints prevent peeling and wear. The high tensile strength, along with resistance to high temperatures (up to 180°C), acids, and abrasions, makes it more durable than other belts.
Yes, the Herringbone Pattern Filter Mesh Belt is designed to withstand temperatures up to 180°C, making it suitable for applications in high-temperature environments like industrial filtration and papermaking.
The mesh belt has a smooth surface that makes it easy to clean. Mud cakes and residue are easily removed, ensuring consistent filtration performance with minimal maintenance.
Yes, the Herringbone Pattern Filter Mesh Belt is highly versatile and is used in food processing applications for filtering juices, syrups, and other products where clean, consistent filtration is essential.
Yes, we offer customization options in terms of size, mesh density, and other specifications to meet the specific needs of your industrial application. Please contact us for more details.
