| Parameter | Unit | DY-FF15-PET-01 | DY-FF15-PET-02 |
| Variant | Extra-weft board grade | Open extra-weft grade | |
| Material | Polyester monofilament or mixed-yarn fabric, as listed | Polyester monofilament or mixed-yarn fabric, as listed | |
| Warp filament | mm | 0.22 | 0.22 |
| Warp density | threads/cm | 28 | 28 |
| Weft density | threads/cm | 26.8 | 32.2 |
| MD breaking strength | N/cm | 700 | 700 |

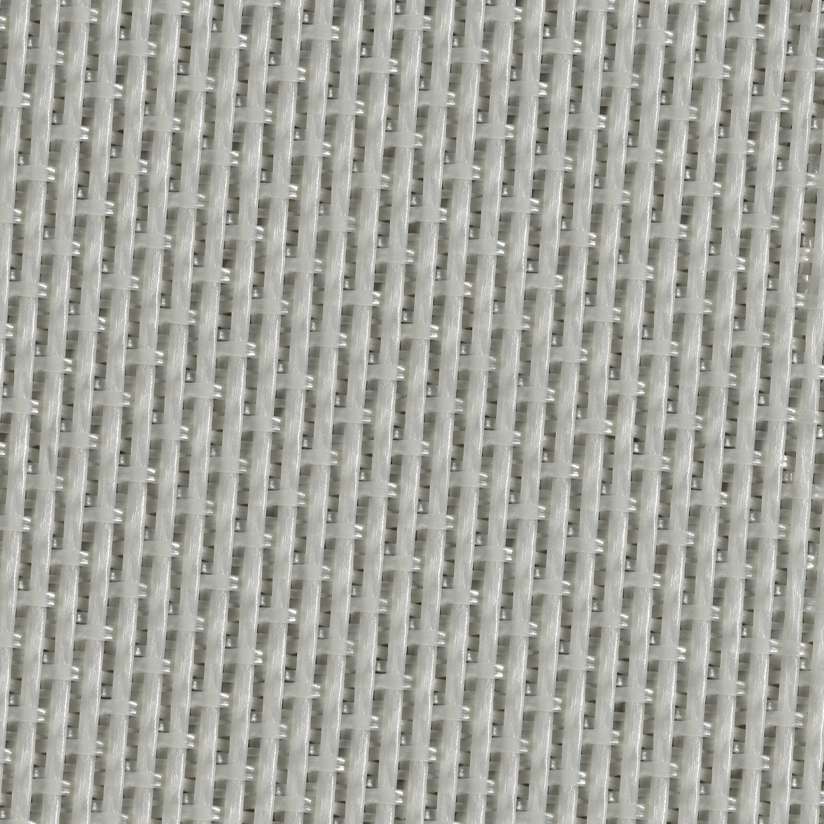

| Structure | type | 5-shed, 1.5-layer | 5-shed, 1.5-layer |
| Weft yarn pair | mm | 0.13 / 0.45 | 0.22 / 0.4 |
| Ordering details | |||
| Joint | EN – Endless supplied configuration | EN – Endless supplied configuration | |
| Edge finish | TS – Thermally sealed edge | TS – Thermally sealed edge | |
| Color | N – Natural / white | N – Natural / white | |
| Order dimensions (example) | mm | W3000-L25000 | W3000-L25000 |
| Order code (example) | DY-FF15-PET-01/W3000-L25000/EN/TS/N/R01 | DY-FF15-PET-02/W3000-L25000/EN/TS/N/R01 | |
| Dimensions | Custom finished dimensions to the machine drawing. | ||
| Specification scope | Nominal fabric specifications; assembly details apply as listed. | ||
Not always. Yarn placement, openings and drainage elements determine the actual result.
